Master Operation

 Enter a name for the Gateway in the Display Name box.

 Select a connection protocol from the Protocol list.

 Select a standard Port or type in a port number.

NOTE: The default port number for SSL protocol is 443. Both TCP and SSL cannot listen

on the same port, and must therefore be configured for distinct ports. The default

<Standard> Gateway port number for TCP and UDP is 2303.

 Identify the Gateway in the Gateway Specifier text box with either of the following

methods:

 Type the server name, DNS name, or network IP address

 Click Find Gateway to open the Find Gateway Wizard, which walks you through the

steps to find a Gateway.

4 If you want to change the default Protocol or Port, select another choice from the list.

See “Connection tab” for details.

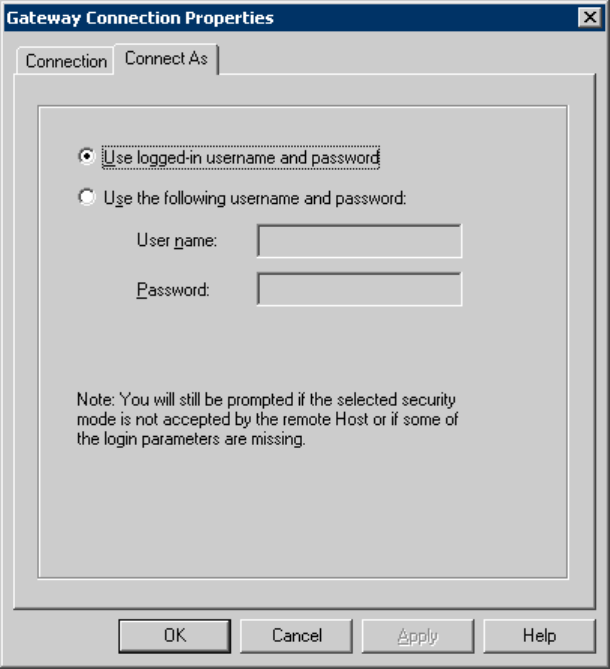

5 In the Connect As tab, there are two login options for connecting to the Gateway:

 Leave the default, Use logged-in username and password, to accept the existing user

 Select Use the following username and password and type a different User name and

Password to change the login credentials.
