Master Operation

IPv6 site-local addresses allow data to be sent only to the devices within a site or

organization. The site-local broadcast address is FF05::4000:1.

To locate a Host computer by polling a specific IPv6 multicast address within a site or

organization, follow these steps:

1 From the Manage Polling Ranges window, select Local Network UDP/IP and click New.

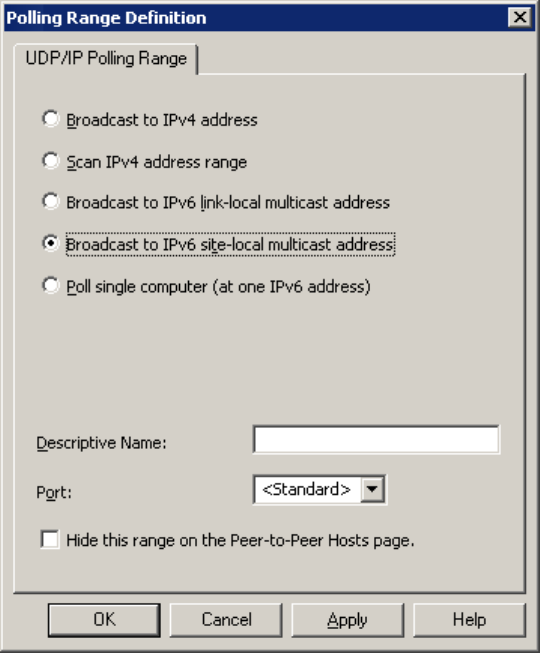

The Polling Ranges Definition window appears.

2 Select Broadcast to IPv6 site-local multicast address.

3 Enter a name for the search next to Descriptive Name.

4 To specify a UDP port number to use for polling, enter it in the Port field. The default

<Standard> port is 1505

5 To omit the search from the Ranges list located on the Peer-to-Peer Hosts tab, click

Hide this range on the Peer-to-Peer Hosts page.

6 Save your search using one of the following methods:

 Click Apply to save changes and leave the Polling Range Definition window open.

 Click OK to save changes and close the Polling Range Definition window.

Create a UDP/IP Poll single computer (at one IPv6 address)

To locate a Host computer by polling a specific IPv6 address, follow these steps:
