Installing Hardware Options

MicroVAX 3100 Models 88/98 User Information

3-5

MLO-013650

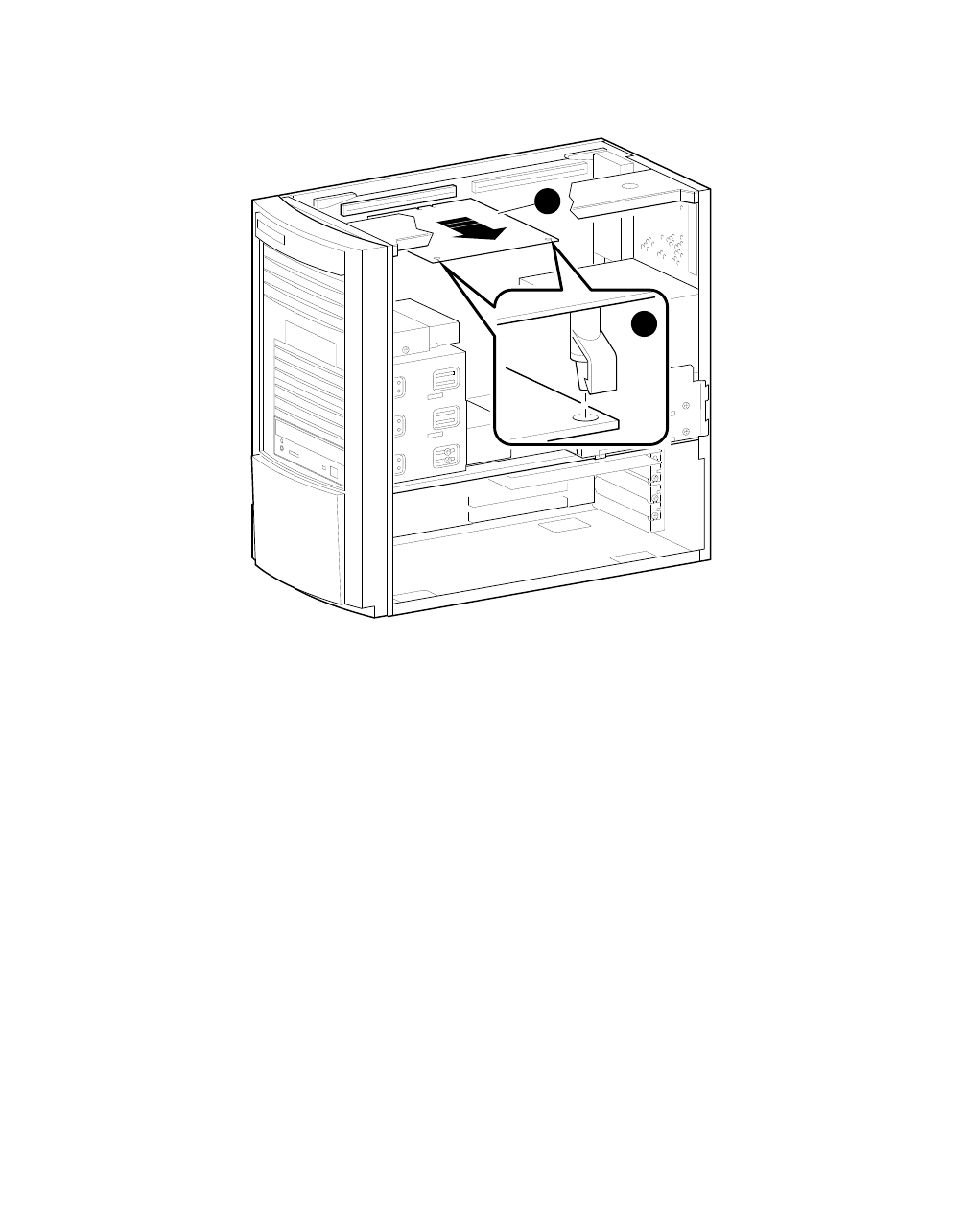

Figure 3-3 Removing the SIMM Board

4. Hold the SIMM board so that the bottom side of the SIMMs face toward you.

Remove the first SIMM from connector J4 by tilting the top of it gently toward you

and lifting it out.

5. Remove the optional SIMM board from connector J1 in the same manner as described

in the previous step. Remove all other SIMMs in the same manner.
