Getting Started

2-8

MicroVAX 3100 Models 88/98 User Information

MLO-013695

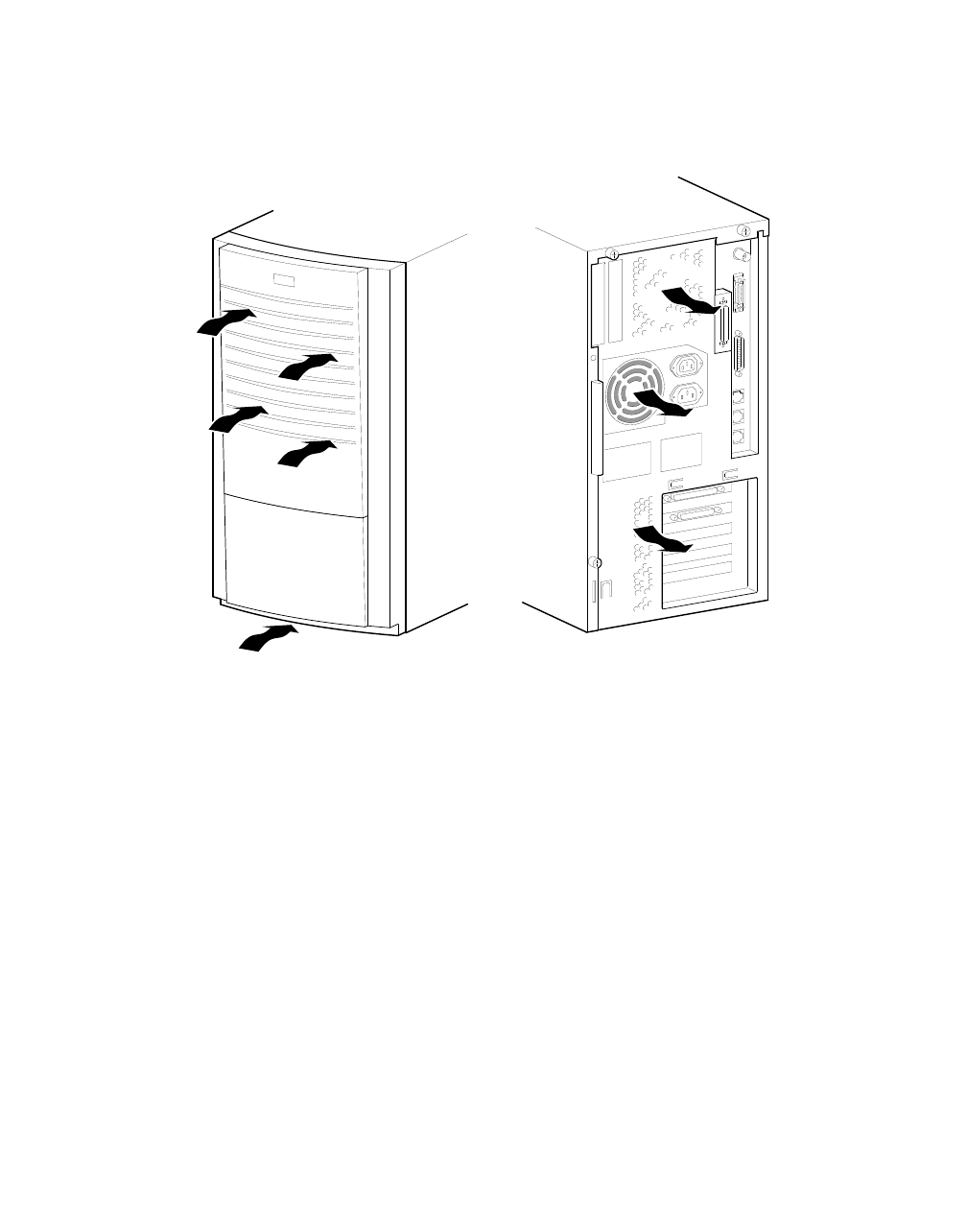

Figure 2-6 System Enclosure Airflow

_______________________ CAUTIONS _________________________

To ensure that your system is properly cooled:

• Make sure that air can freely flow into the front, and out of the rear of the

system unit.

• Do not remove a filler plate until you are ready to add a new system

component.

___________________________________________________________
